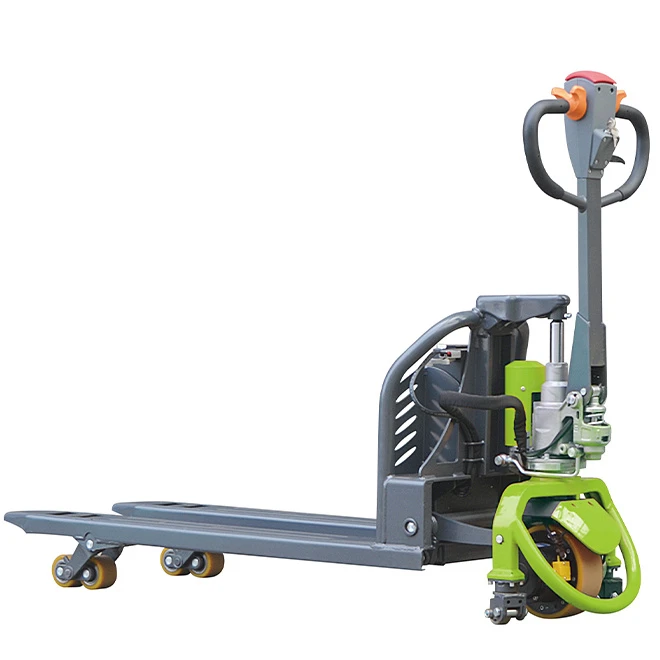

Hangzhou Carry Equipment Co., Ltd. is one of the leading manufacturers and suppliers of lithium-ion battery pallet truck in China. If you're going to wholesale durable lithium-ion battery pallet truck made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
High-Strength Conditions
As a rider-on electric vehicle, RPT20/25/30 is suitable for working environment under high-strength conditions. It can provide users with safe, comfortable and reliable logistics solutions.
Large-Capacity Battery
210/280Ah large-capacity battery meets the needs of continuous work. Side-slidable battery allows customers to easily replace batteries.
Full Steel Cover
The full steel cover well protects important internal parts and reduces the impact on the internal system caused by collisions.
Innovative Slide Rail Lifting
Innovative slide rail lifting structure reduces wearing and improves power efficiency. It is designed for heavy duty handling and operation in supermarket, logistics center, workshop and warehouses.
Product Selling Points
1. EPS – Electric Power Steering System, Operation force light, save energy, Low noise.
2. Tilter head ergonomically designed for maximum operator comfortable, and control buttons positioned to allow operation with either hand.
3. Double floating springs, patented design of intensifier cylinder, Stronger driving force.
4. Electronic lift limitation switch ensure safety and energy-saving.
5. Curve automatic deceleration devices, more safe.
6. Curtis AC traction controller from USA, Stepless speed regulation, Automatic protection.
7. AC Driving system-Low noise, quiet, without carbon brush and free maintenance.
8. Side-way battery, easy to replace.
Specifications
|
Capacity |
2 tons, 2.5 tons, 3 tons |
Aisle Width |
105" |
|
Max. Lifting Height |
8.5" |
Inside Distance Between Forks |
8.9" |
|
Fork Length |
48" |
Fork Overall Width |
27" |
|
Single Fork Width |
9.1" |
Overall Height |
57.6" |
|
Overall Length |
84.4" |
Overall Width |
36.9" |
|
Driving Speed-Unladen |
4.97 mph |
Driving Speed-Laden |
4.66 mph |
|
Turning Radius |
73.2" |
Lifting Distance |
5.3" |
|
Battery Capacity |
300AH |
Battery Spec |
24V/300AH |
|
Battery Voltage |
24V |
Battery Type |
Lead-acid Battery |
|
Fork Thickness |
2.2" |
Fork Lowered Height |
3.2" |
|
Service Weight |
1895 lbs. |
Gross Weight |
1970 lbs. |
|
Charger |
24V/40A built-out |
Package Size |
77"x34"x53" |
|
With Lcd Panel |
Yes |
- Best Fit: Warehouses, distribution centers, busy loading docks, and 3PL facilities.
- Notice: Handle Self-Installation Required
- For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).
Why Choose Us
We are a professional manufacturer with independent production lines, stable delivery and competitive factory price.
As an experienced factory, we support OEM/ODM: fork size, load, color, logo and packaging can be customized.
As a reliable supplier, we provide complete export documents, fast after-sales service and long-term supply.
Large quantity orders enjoy better wholesale price and preferential terms.
Factory Process Of Electric Pallet Truck
More Related Products
FAQ
Q1: What is the difference between lead-acid batteries and lithium batteries?
A: Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time. Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
Q2: What are the common problems with pallet trucks?
A: Common faults and possible causes of pallet trucks:
|
Fault Type |
Possible Causes |
|
Severe wheel wear |
Rough ground, overloading, frequent use |
|
Fork bending or breakage |
Overloading, uneven cargo placement |
|
Handle control failure |
Spring failure, internal parts loosened |
|
Weak hydraulic lifting |
Contaminated or insufficient hydraulic oil |
Q3: Should you push or pull an electric pallet jack?
A: Insert forks all the way into the pallet to ensure balanced weight distribution. Generally, push the load rather than pull it if possible. This will allow you to see where you are headed. Also, pushing uses your legs to propel the load, whereas pulling can put a strain on your back.
Q4: Is riding a pallet jack an OSHA violation?
A: Although you might not think of a pallet jacks as a trucks, OSHA classifies them as a Class III forklift under 29 CFR 1910.178 - Powered Industrial Trucks. Therefore, to comply with federal law, anyone who must use a powered pallet jack for their job needs to complete training that satisfies OSHA requirements.
Q5: How long does it take to get a pallet jack certification?
A: After completing our two-hour pallet jack training course and an employer-led demonstration and operator evaluation, you will receive a certificate and certification card that is accepted in every state. Certification is valid for three years.
Q6: Is it hard to operate an electric pallet jack?
A: Not at all! If you're familiar with a manual pallet jack, you'll find the electric version even easier to handle. It requires less physical effort, but you should still stay alert while operating it.
Q7: What should you never do with a pallet jack?
A: Never place hands or feet under the pallet jack. Never exceed the posted capacity. Move the load slowly to ensure the safety of you and those around you. Whenever possible, push the load – not pull.
Q8: How heavy is an electric pallet jack?
A: Durable lithium battery ensures longer lifespan and minimal maintenance. Equipped with electromagnetic braking for reliable stopping power. DC control system delivers responsive and precise handling. Total weight of 322 lbs including battery.
