Hangzhou Carry Equipment Co., Ltd. is one of the leading manufacturers and suppliers of initial lift stacker in China. If you're going to wholesale durable initial lift stacker made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Initial Lift Stacker – Durable Material Handling Solution By Carryup
The Initial Lift Stacker from Carryup is designed to improve efficiency in warehouse and logistics operations where both stacking and short-distance transport are required. Unlike standard stackers, this model features an initial lift function that raises the support legs, allowing it to handle uneven floors, ramps, and loading docks with greater stability.
Engineered for professional use, the Initial Lift Stacker combines robust steel construction with precise lifting control, making it suitable for demanding industrial environments. It is widely used in warehouses, factories, distribution centers, and retail storage facilities where flexibility and durability are essential.
This equipment is especially valuable for businesses seeking a reliable material handling equipment supplier that delivers consistent performance and long service life.
Key Features & Advantages
Initial Lift Function
Raises support legs for improved ground clearance on slopes and uneven surfaces.
01
Heavy-Duty Steel Frame
Built for long-term industrial use with strong load-bearing capacity.
02
Smooth Hydraulic Lifting System
Ensures stable and controlled lifting with minimal operator effort.
03
Compact Design
Ideal for narrow aisles and confined warehouse spaces.
04
Ergonomic Operation
Designed for operator comfort and efficiency during repetitive tasks.
05

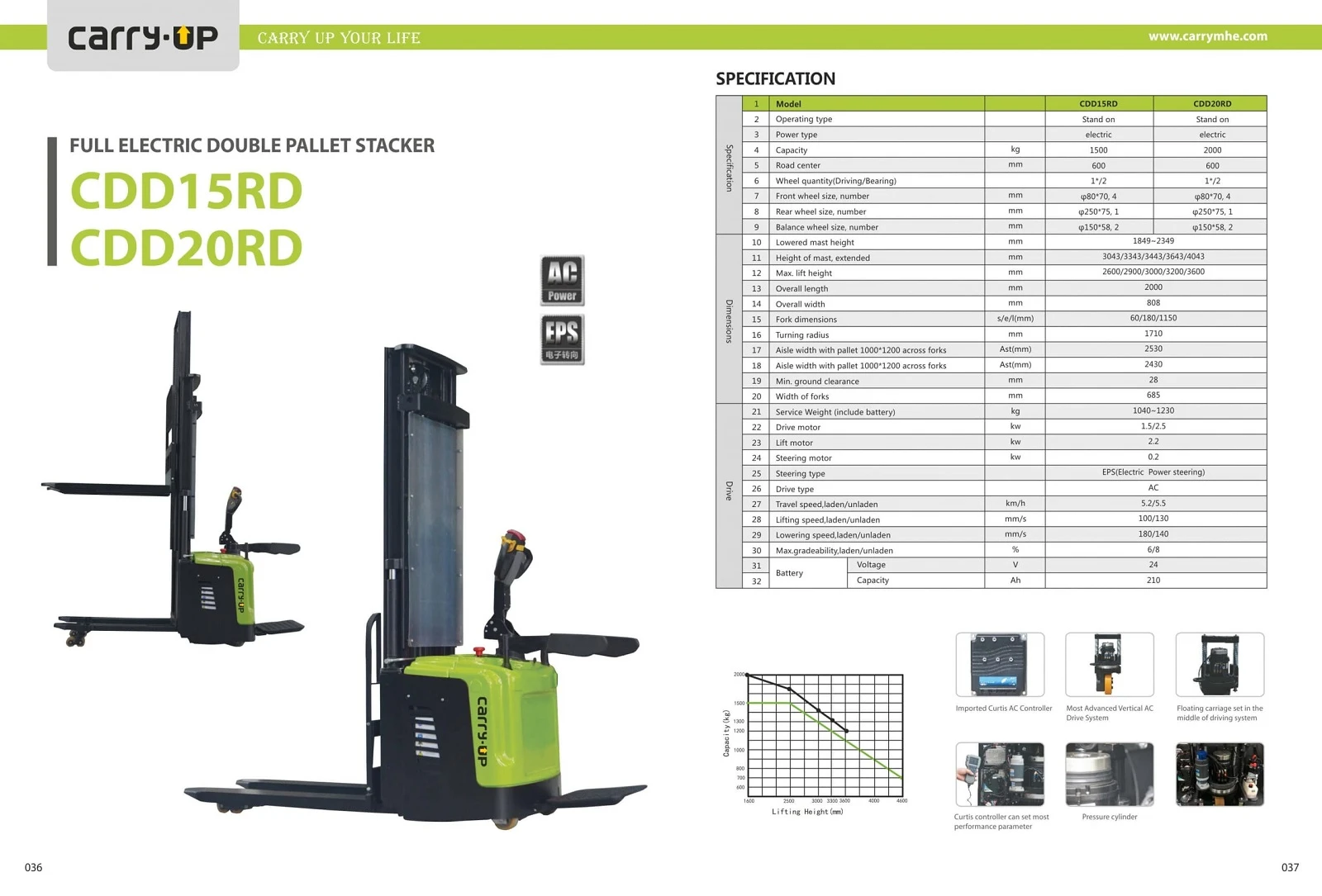

Technical Specifications
|
Double Pallet Electric Stacker Initial Lifting Specification |
||||||
|
Specification |
1 |
Model |
CDD15RD |
CDD20RD |
||
|
2 |
Operating type |
Stand on |
Stand on |
|||
|
3 |
Power type |
Electric |
Electric |
|||
|
4 |
Capacity |
kg |
1500 |
2000 |
||
|
5 |
Road center |
mm |
600 |
600 |
||
|
6 |
Wheel quantity (Driving/Bearing) |
1*/2 |
1*/2 |
|||
|
7 |
Front wheel size, number |
mm |
φ80*70,4 |
φ80*70,4 |
||
|
8 |
Rear wheel size, number |
mm |
φ250*75,1 |
φ250*75,1 |
||
|
9 |
Balance wheel size, number |
mm |
φ150*58,2 |
φ150*58,2 |
||
|
Dimensions |
10 |
Lowered mast height |
mm |
1849~2349 |
||
|
11 |
Height of mast, extended |
mm |
3043/3343/3443/3643/4043 |
|||
|
12 |
Max. lift height |
mm |
2600/2900/3000/3200/3600 |
|||
|
13 |
Overall length |
mm |
2000 |
|||
|
14 |
Overall width |
mm |
808 |
|||
|
15 |
Fork dimensions |
s/e/l (mm) |
60/180/1150 |
|||
|
16 |
Turning radius |
mm |
1710 |
|||
|
17 |
Aisle width with pallet1000*1200 across forks |
Ast (mm) |
2530 |
|||
|
18 |
Aisle width with pallet1000*1200 across forks |
Ast (mm) |
2430 |
|||
|
19 |
Min. ground clearance |
mm |
28 |
28 |
||
|
20 |
Width of forks |
mm |
685 |
685 |
||
|
Drive |
21 |
Service Weight(include battery) |
kg |
1040~1230 |
||
|
22 |
Drive motor |
kw |
1.5/2.5 |
1.5/2.5 |
||
|
23 |
Lift motor |
kw |
2.2 |
2.2 |
||
|
24 |
Steering motor |
kw |
0.2 |
0.2 |
||
|
25 |
Steering type |
EPS (Electric Power steering) |
||||
|
26 |
Drive type |
AC |
||||
|
27 |
Travel speed, laden/unladen |
km/h |
5.2/5.5 |
5.2/5.5 |
||
|
28 |
Lifting speed, laden/unladen |
mm/s |
100/130 |
100/130 |
||
|
29 |
Lowering speed, laden/unladen |
mm/s |
180/140 |
180/140 |
||
|
30 |
Max. grade ability, laden/unladen |
% |
6/8 |
6/8 |
||
|
31 |
Battery |
Voltage |
V |
24 |
24 |
|
|
32 |
Capacity |
Ah |
210 |
210 |
||
Specifications can be customized based on project requirements.
Applications
The Carryup Initial Lift Stacker is widely used in: Carryup
- Warehouse storage and pallet stacking
- Logistics and distribution centers
- Manufacturing plants
- Retail and wholesale storage operations
- Loading and unloading goods on uneven ground
Its versatility makes it a preferred choice for companies looking for a dependable stacker manufacturer with flexible solutions.
Why Choose Carryup
Carryup is a professional material handling equipment manufacturer and supplier, committed to delivering high-quality solutions for global B2B clients.
Our Strengths
Experienced Factory Production
Advanced manufacturing processes ensure consistent quality and performance.
Strict Quality Control
Each unit undergoes comprehensive testing before delivery.
Customization Capability
We support OEM/ODM services to meet specific operational needs.
Global Supply Experience
Reliable logistics and export support for international clients.
Responsive Service Team
Fast communication and technical assistance throughout the project lifecycle.
Our Services
As a trusted factory supplier, Carryup focuses on long-term partnerships and stable supply chains.
OEM & Custom Design Support
Bulk Order Production
Technical Consultation
After-Sales Service & Spare Parts Supply
International Shipping Coordination
Factory Process Of Electric Stacker
More Related Products
FAQ
Q: 1. What Is The Difference Between An Initial Lift Stacker And A Standard Stacker?
A: An initial lift stacker can raise its legs to improve ground clearance, making it suitable for ramps and uneven surfaces, while standard stackers operate best on flat floors.
Q: 2. Can You Provide Customization For Different Load Capacities Or Lifting Heights?
A: Yes, as a professional manufacturer, we offer customization options based on your operational requirements, including load capacity, fork size, and lifting height.
Q: 3. What Is Your Typical Lead Time For Bulk Orders?
A: Lead time usually ranges from 15–30 days depending on order quantity and customization level.
Q: 4. Do You Support OEM Branding For Distributors?
A: Yes, we provide OEM services including logo branding, packaging customization, and product labeling.
Q: 5. What Kind Of Quality Assurance Do You Provide?
A: All products are tested before shipment, and we offer warranty support along with spare parts supply to ensure long-term reliability.
Hot Tags: initial lift stacker, China initial lift stacker manufacturers, suppliers, factory
