Hangzhou Carry Equipment Co., Ltd. is one of the leading manufacturers and suppliers of 4400 lb electric stacker in China. If you're going to wholesale durable 4400 lb electric stacker made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

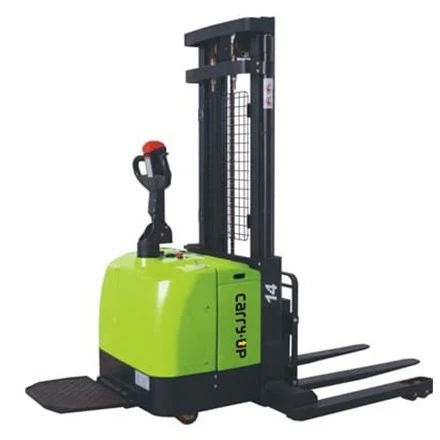

4400 Lbs Electric Stacker – Reliable Material Handling Solution For Warehouses
The 4400 lbs Electric Stacker from Carryup is designed to improve efficiency in modern warehouses, factories, and logistics centers. Built for medium-duty lifting tasks, this electric stacker combines stable lifting performance with user-friendly controls, making it a practical choice for daily pallet handling.
With a lifting capacity of up to 4400 lbs (2000 kg), it is suitable for stacking goods, loading/unloading trucks, and transporting pallets over short distances. The compact structure allows it to operate smoothly in narrow aisles, helping businesses optimize storage space without compromising safety.
This model is engineered with durable steel construction, high-performance battery systems, and a reliable hydraulic lifting mechanism, ensuring consistent operation in demanding industrial environments.
Key Features & Benefits
High Load Capacity
Handles up to 4400 lbs, ideal for standard warehouse operations.
Electric Lifting System
Smooth and precise lifting reduces manual effort and improves productivity.
Compact Design
Suitable for confined working spaces and narrow warehouse aisles.
Ergonomic Control Handle
Easy operation with intuitive controls, reducing operator fatigue.
Durable Construction
Reinforced mast and high-quality components ensure long service life.
Low Maintenance
Simplified structure reduces downtime and maintenance costs.
Technical Specifications
|
CDD15K/20K Electric Stacker |
|||||
|
Specification |
1 |
Model |
CDD15K/CDD20K |
||
|
2 |
Operating Type |
Stand on |
|||
|
3 |
Power Type |
Electric |
|||
|
4 |
Load Capacity |
kg |
1500/2000 |
||
|
5 |
Load Center |
C (mm) |
600 |
||
|
6 |
Wheel Type |
Polyurethane |
|||
|
7 |
Wheelbase |
Y (mm) |
1355 |
||
|
8 |
Wheel Size, front |
mm |
￠250×75 |
||
|
9 |
Wheel Size, rear |
mm |
￠80×70 |
||
|
10 |
Additional wheel |
mm |
￠115×50 |
||
|
11 |
Thread, rear |
b11 (mm) |
570/685 |
||
|
Dimensions |
12 |
Lowered Mast Height |
h1 (mm) |
2085/1765/2015/2165/ 2330/2000/2170/2340 |
|
|
13 |
Max. lifting Height |
h3 (mm) |
1600/2500/3000/3300/ 3500/4500/5000/5500 |
||
|
14 |
Extended Mast Height |
h4 (mm) |
2085/3050/3550/3850/ 3950/5050/5550/6050 |
||
|
15 |
Lowered Fork Height |
h13 (mm) |
90 |
||
|
16 |
Overall Length |
l1 (mm) |
2010/2020 |
||
|
17 |
Overall Width |
b1 (mm) |
790 |
||
|
18 |
Fork Dimensions |
S/e/l (mm) |
60/170/1150 |
||
|
19 |
Width over Forks |
b5 (mm) |
570/685 |
||
|
20 |
Aisle Width, with Pallet 1000×1200 Cross wise |
Ast (mm) |
2900 |
||
|
21 |
Aisle Width, with Pallet 800×1200 Length wise |
Ast (mm) |
2840 |
||
|
22 |
Ground Clearance |
m2 (mm) |
40 |
||
|
23 |
Turning Radius |
mm |
1600 |
||
|
Performance |
24 |
Speed |
Lifting (Laden/unladen) |
m/s |
/ |
|
25 |
Falling (Laden/unladen) |
m/s |
hand control |
||
|
26 |
Max. Grade ability |
(Laden/unladen) |
% |
8/10 |
|
|
27 |
Service Weight (include battery) |
kg |
1050/1220/1185/1350 |
||
|
Driven |
28 |
Service brake |
Electromagnetic / Regenerative |
||
|
29 |
Motor |
Driven Motor |
kw |
1.2/1.5 |
|
|
30 |
Lift Motor |
kw |
3.3 |
||
|
31 |
Steering Motor Type |
Electric |
|||
|
32 |
Battery |
Voltage/nominal Capacity |
V/Ah |
24/110 (240) |
|
|
33 |
Size (L×W×H) |
mm |
650×197×530 |
||
Customization options are available based on your operational requirements.
Applications
The 4400 lbs Electric Stacker is widely used in:
- Warehouse pallet stacking
- Manufacturing plants
- Distribution centers
- Retail storage facilities
- Logistics and freight handling
It is particularly suitable for businesses looking to increase efficiency while reducing manual labor costs.
Why Choose Carryup
Carryup is a trusted electric stacker manufacturer with years of experience in material handling equipment. We focus on delivering reliable and cost-effective solutions for global B2B clients.
Our Advantages
As a professional electric stacker factory, we understand the needs of distributors, wholesalers, and project contractors. Our team supports you from product selection to after-sales service.
Direct factory supply ensures competitive pricing
Experienced supplier for international markets
Strict quality control throughout production
OEM & customization services available
Fast delivery and stable supply chain
OEM & Customization Services
We offer flexible OEM solutions for bulk buyers:
- Branding & logo customization
- Fork size and lifting height adjustments
- Voltage and battery configuration
- Packaging tailored for export
If you are sourcing from a reliable electric stacker supplier, Carryup can support your long-term business growth.
Factory Process Of Electric Stackers
More Related Products
FAQ
Q: 1. What is your minimum order quantity (MOQ)?
A: Our MOQ is flexible depending on the model and customization level. For standard models, small trial orders are acceptable.
Q: 2. Can you provide OEM branding for distributors?
A: Yes, we support OEM and private labeling services, including logo, packaging, and product customization.
Q: 3. What certifications do your electric stackers have?
A: Our products can be supplied with CE and other certifications required for international markets.
Q: 4. How long is the production lead time?
A: Standard models usually take 15–25 days. Customized orders may require additional time depending on specifications.
Q: 5. Do you offer spare parts and after-sales support?
A: Yes, we provide spare parts supply and technical support to ensure long-term operation for your clients.
Q: 6. What industries typically use this product?
A: Our electric stackers are widely used in logistics, warehousing, manufacturing, and retail sectors.
Contact Carryup
Contact Carryup today to get a quotation and tailored solution for your business.
Hot Tags: 4400 lb electric stacker, China 4400 lb electric stacker manufacturers, suppliers, factory
