Manual Stacker Lifter – Carryup Material Handling Solution
Manual Stacker Lifter is a practical and cost-effective lifting equipment designed for pallet handling, stacking, and short-distance transport in warehouses, workshops, and production lines. It combines hydraulic lifting technology with manual operation, making it suitable for environments where electric equipment is not necessary or cost-sensitive. With a strong steel mast structure and stable hydraulic system, it ensures safe lifting performance and long service life even under daily industrial use.
The Manual Stacker Lifter is designed for efficient pallet handling, stacking, and short-distance transport in warehouses and industrial environments. It features a manual hydraulic lifting system with stable performance and low maintenance cost, making it suitable for daily material handling tasks in factories and logistics centers.
Technical Specifications
|
SDJ, SDJAS Manual Stacker Truck Specification |
||||||||||
|
Specification |
1 |
Model |
SDJ1016 / SDJAS1016 |
SDJ1025 / SDJAS1025 |
SDJ1030 / SDJAS1030 |
SDJ1516 / SDJAS1516 |
SDJ1525 / SDJAS1525 |
SDJ1530 / SDJAS1530 |
SDJ2016 / SDJAS2016 |
|
|
2 |
Load capacity |
kg |
1000 |
1000 |
1000 |
1500 |
1500 |
1500 |
2000 |
|
|
3 |
Load center |
c (mm) |
500 |
500 |
500 |
400 |
400 |
400 |
400 |
|
|
4 |
Service weight |
kg |
250 |
290 |
316 |
270 |
310 |
336 |
290 |
|
|
5 |
Lowered mast height |
h1 (mm) |
2080 |
1830 |
2080 |
2080 |
1830 |
2080 |
2080 |
|
|
6 |
Lifting height |
h3 (mm) |
1600 |
2500 |
3000 |
1600 |
2500 |
3000 |
1600 |
|
|
7 |
Overall height |
h4 (mm) |
2080 |
3000 |
3500 |
2080 |
3000 |
3500 |
2080 |
|
|
8 |
Fork lowered height |
h13 (mm) |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
|
|
9 |
Overall length |
l1 (mm) |
1280 |
1280 |
1280 |
1280 |
1280 |
1280 |
1280 |
|
|
10 |
Overall width |
b1 (mm) |
700/980 |
700/980 |
700/980 |
700/980 |
700/980 |
700/980 |
700/980 |
|
|
11 |
Fork dimensions |
s/e/l (mm) |
Forge fork: 35×100×900, fixed type: 60×142×1100, mobile type: 60×142×900 |
|||||||
|
12 |
Width overall forks |
b5 (mm) |
550/660 |
550/660 |
550/660 |
550/660 |
550/660 |
550/660 |
550/660 |
|
|
13 |
Ground clearance |
m1 (mm) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
14 |
Turning radius |
mm |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
|
|
15 |
Lifting speed laden/unladen |
mm/stroke |
9.5/10.5 |
9.5/10.5 |
9.5/10.5 |
9.5/10.5 |
9.5/10.5 |
9.5/10.5 |
9.5/10.5 |
|
|
16 |
Lowering speed laden/unladen |
mm/s |
Manual control |
|||||||
This equipment is commonly used in logistics centers and small-to-medium factories where flexible lifting solutions are required without relying on electric power.
Key Features

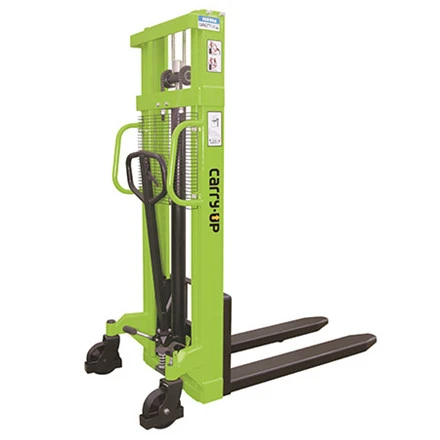

Carryup Hand Stacker
1: High quality mast steel ensures rigidity, durability.
2: Integral pump, which prevents loosening, leak-proof.
3: High efficiency pump, operating lighter, more comfortable.
4: Lifting speed keeps smooth regardless of loading weight, which is safe to use.
5: The stacker can be lifted by handle or foot pedal.
6: Hand control valve precise control convenience.
7: Set the active safety valve to prevent overloading of use.
8: Maintenance-free design, ensures security, reduces service cost.

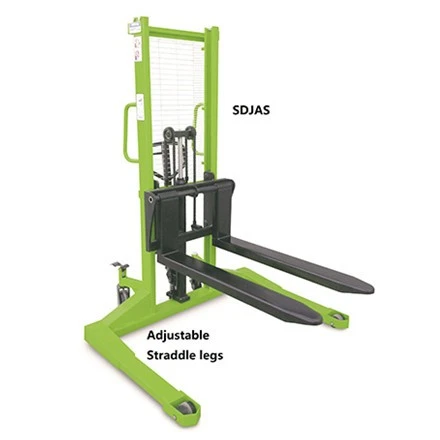

Carryup Hand Stacker of Straddle Legs
1: C-steel ensures high capacity, rigidity.
2: Oil leaking-proof pump, 2 years warranty.
3: 180mm big steering wheel design.
4: Option with adjustable wide legs.
Option With Adjustable Wide Legs
1.Flexible and simple: Manual stacker is characterized by smooth lifting, compact structure, flexible transportation, simple operation etc.
2. Anti-leakage design: The cylinder is with anti-leakage design, piston rod is chrome plated.
3. Sturdy and compact: It is suitable for cargo handling and stacking at factories, workshops, warehouses, stations, and docks.
Applications
Manual Stacker Lifter is widely used in:
Warehouse pallet stacking and storage management
Factory production line material handling
Logistics distribution centers
Retail stockroom organization
Small workshop loading and unloading tasks
About Carryup
Carryup is a professional material handling equipment manufacturer and factory with strong experience in industrial lifting and warehouse solutions. As a trusted B2B supplier, we focus on delivering durable, safe, and cost-efficient lifting equipment for global customers.
Our production system covers welding, assembly, testing, and quality inspection under strict standards. Each Manual Stacker Lifter is tested before delivery to ensure stable performance and operational safety.
We also provide OEM & customization services, including load capacity adjustment, fork dimension customization, and color branding according to customer requirements. With a stable supply chain and efficient production capacity, Carryup supports distributors, wholesalers, and equipment rental companies worldwide.
Factory Process Of Electric Stackers
More Related Products
FAQ
Q1: What Is The Advantage Of A Manual Stacker Compared To An Electric Stacker?
A manual stacker is more cost-effective, requires no electricity, and has lower maintenance costs, making it ideal for light to medium-duty warehouse operations.
Q2: Can Carryup Provide OEM Customization?
Yes, as a manufacturer and factory, Carryup offers OEM services including branding, color customization, fork size adjustment, and lifting capacity modification.
Q3: What Industries Commonly Use This Equipment?
It is widely used in warehousing, logistics, manufacturing plants, retail storage, and distribution centers.
Q4: What Is The Typical Delivery Time For Bulk Orders?
Lead time usually depends on order quantity, but standard production takes around 15–30 days for bulk shipments.
Q5: Do You Provide After-Sales Support And Spare Parts?
Yes, we provide full after-sales service and supply spare parts to ensure long-term equipment operation and minimal downtime.
Hot Tags: manual stacker lifter, China manual stacker lifter manufacturers, suppliers, factory

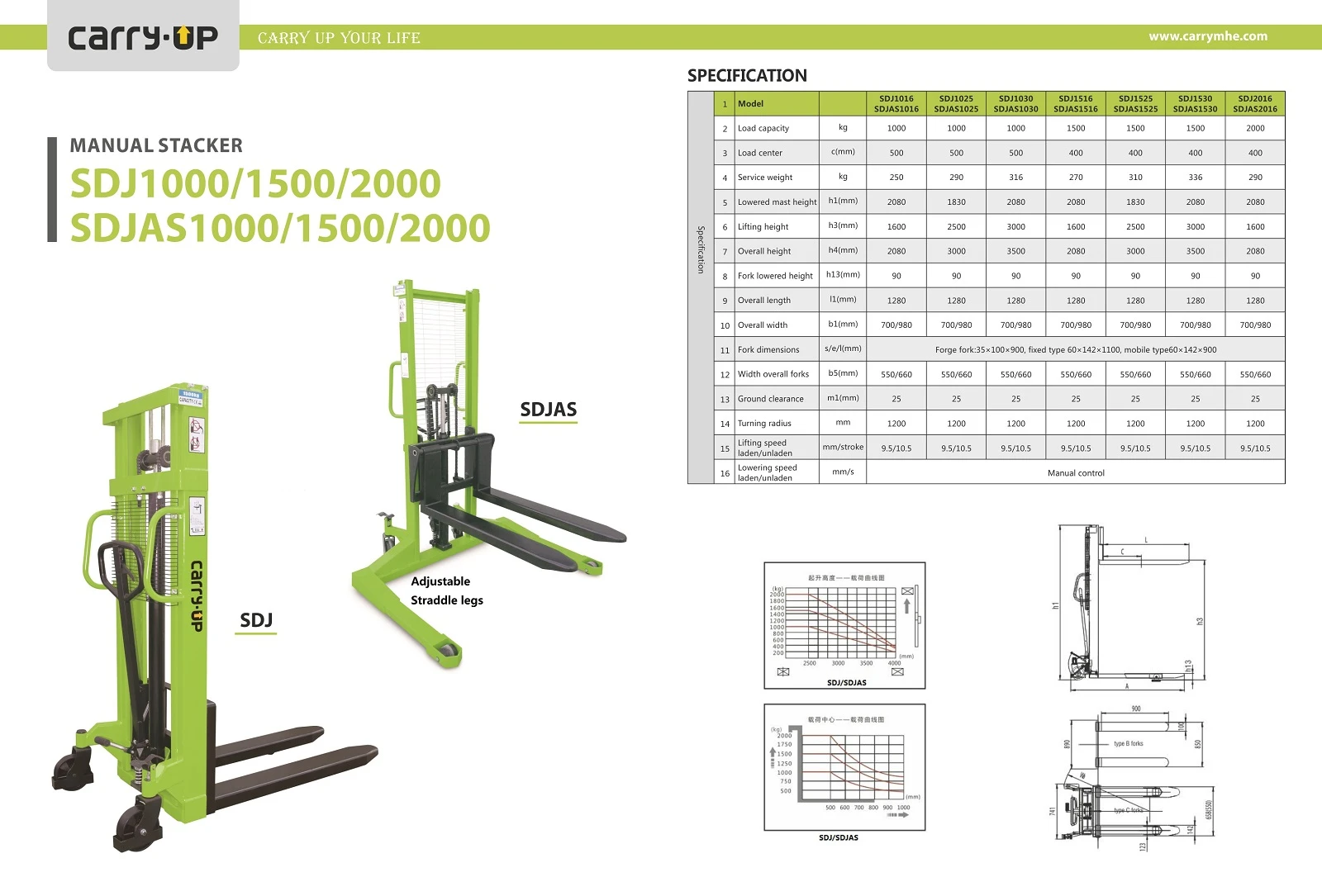

SDJ Manual Stacker Truck Specification
