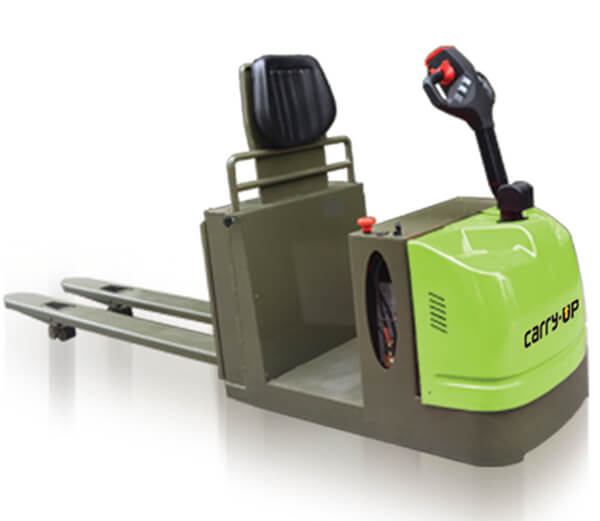

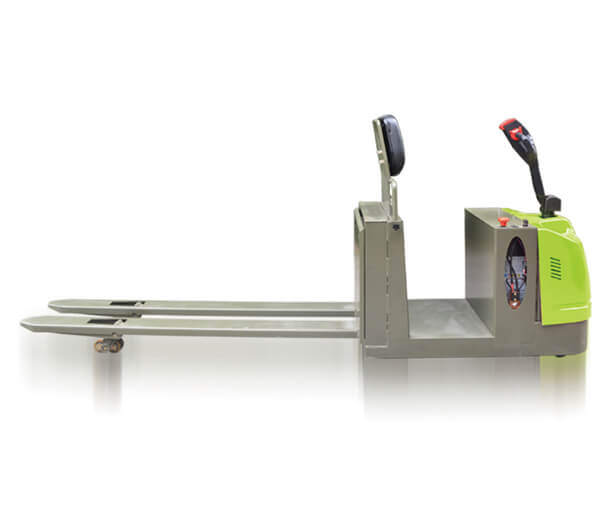

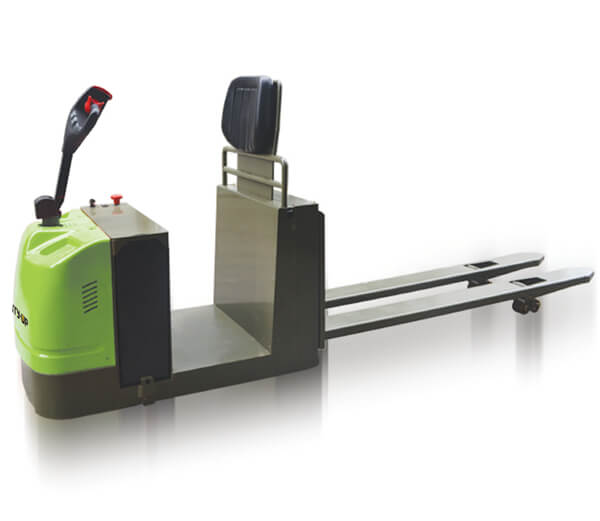

CBD20Q
| CARRY•UP ELECTRIC LOWER ORDER PCIKER | |||||
| General | 1 | Model | CBD20Q | ||
| 2 | Power Type | Electric | |||
| 3 | Operation Type | Stand-on | |||
| 4 | Rated Capacity | kg | 2000 | ||
| 5 | Load Centre | c(mm) | 600 | ||
|
Characteristic &Dimension |
6 | Tyre | Front /rear type | mm | PU/PU |
| 7 | Front wheel size | mm | φ215×75 | ||
| 8 | Driving wheel size | mm | φ80×70 | ||
| 9 | Balance wheel size | mm | φ100×40 | ||
| 10 | front/rear number (X=drive) | mm | 1X+2 / 4 | ||
| 11 | Overall Dimension | Backrest height | h1(mm) | 1406 | |
| 12 | Lifting height | h2(mm) | 120 | ||
| 13 | Min. Height | h3(mm) | 85 | ||
| 14 | Wheelbase | y(mm) | 2117 | ||
| 15 | Overall Length | l1(mm) | 2461 | ||
| 16 | Overall width( without forks) | l2(mm) | 1311 | ||
| 17 | Overall width | b1(mm) | 730 | ||
| 18 | Fork Dimensions | l/e/s(mm) | 1150×175×75 | ||
| 19 | Forks spread | b5(mm) | 540 | ||
| 20 | Turning Radius | Wa(mm) | 2300 | ||
| 21 | Aisle Width for pallet 1000*1200 | Ast(mm) | 3045 | ||
| Performance | 22 | Speed | Travel (laden/unladen) | km/h | 4.6/5.6 |
| 23 | Lifting (laden/unladen) | mm/s | 26/34 | ||
| 24 | Lowering (laden/unladen) | mm/s | / | ||
| 25 | Steering type | Manul | |||
| 26 | Service brake type | Electromagnetism | |||
| 27 | Service brake | Handle | |||
| 28 | Parking brake type | Electromagnetism | |||
| 29 | Max.Gradeability(Laden/unladen) | % | 6/10 | ||
| 30 | Service weight(include battery) | kg | 900 | ||
|
Power& Transmission |
31 | Motor | Drive motor type | AC/DC | |
| 32 | Drive motor | kw | 1.5/1.2 | ||
| 33 | Lift motor type | DC | |||
| 34 | Lift motor | kw | 2.2 | ||
| 35 | Battery | Voltage/Capacity | V/Ah | 24/210 | |
| 36 | Weight | kg | 200 | ||
