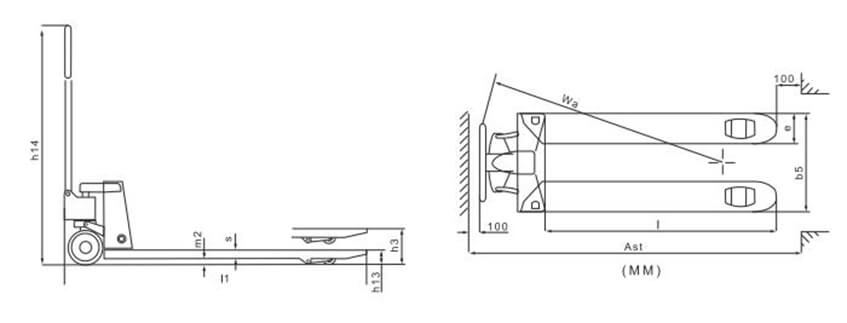

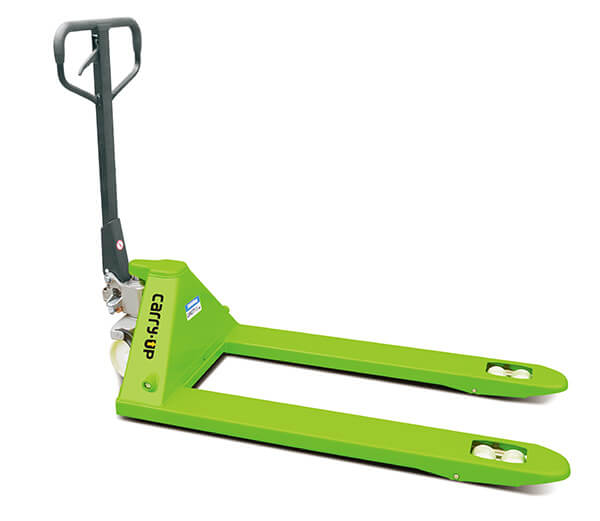

| CARRY•UP BF SPECIFICATION | ||||||
| Specification | 1 | Model | BF | |||
| 2 | Capacity | kg | 2500 | 3000 | 3500 | |
| 3 | Steering wheel size | mm | ￠180×50 | ￠180×50 | ￠180×50 | |
| 4 | Fork wheel tandem | mm | ￠80×70/￠74×70 | ￠80×70/￠74×70 | ￠80×70/￠74×70 | |
| 5 | Fork wheel single | mm | ￠80×93/￠74×93 | ￠80×93/￠74×93 | ￠80×93/￠74×93 | |
| 6 | Max. Lifting height | h3(mm) | 200/190 | 200/190 | 200/190 | |
| 7 | Lowered height | h13(mm) | 85/75 | 85/75 | 85/75 | |
| 8 | Overall length | l1(mm) | 1534/1604 | 1534/1604 | 1534/1604 | |
| 9 | Fork dimensions | s/e/l(mm) | 54/160/1150(1220) | 54/160/1150(1220) | 54/160/1150(1220) | |
| 10 | Width overall forks | b5(mm) | 520/550/685 | 520/550/685 | 520/550/685 | |
| 11 | Turning radius | Wa mm | 1249/1319 | 1249/1319 | 1249/1319 | |
| 12 | Aisle width, with pallet 1000x1200 crosswise | Ast(mm) | 1683/1716/1786 | 1683/1716/1786 | 1683/1716/1786 | |
| 13 | Aisle width, with pallet 800x1200 lengthwise | Ast(mm) | 1783/1816/1886 | 1783/1816/1886 | 1783/1816/1886 | |
| 14 |
Ground clearance, centre of wheelbase |
m2(mm) | 32 | 32 | 32 | |
| 15 |
Height of tiller in drive position max |
h14(mm) | 1224 | 1224 | 1224 | |
