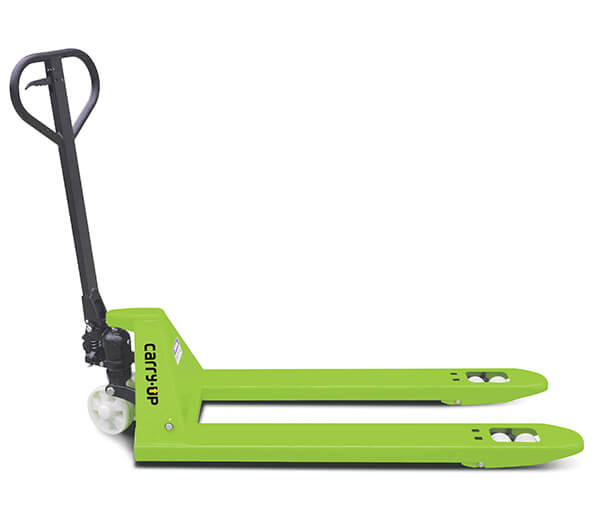

| CARRY•UP DB SPECIFICATION | ||||

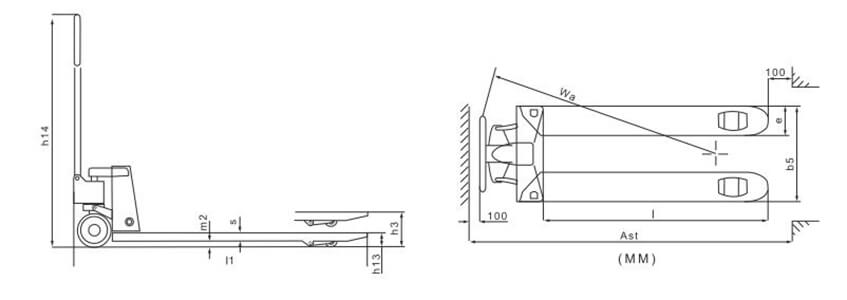

| Specification | 1 | Model | DB | |
| 2 | Capacity | kg | 2000 | |
| 3 | Service weight | kg | 55-65 | |
| 4 | Tyre size, front | mm | ￠160×50 | |
| 5 | Tyre size, rear | mm | ￠70×60 | |
| 6 | Lifting height | h3(mm) | 190 | |
| 7 | Lowered height | h13(mm) | 75 | |
| 8 | Fork dimensions | s/e/l(mm) | 54/160/1150 | |
| 9 | Width overall forks | b5(mm) | 520/550/685 | |
| 10 |
Aisle width for pallet 1000x1200 crossways |
Ast(mm) | 1730/1800 | |
| 11 |
Aisle width for pallets 800x1200 lengthways |
Ast(mm) | 1780/1800 | |
| 12 |
Ground clearance, centre of wheelbase |
m2(mm) | 23 | |
| 13 |
Height of tiller in drive position max |
h14(mm) | 1177 | |
Carryup Electric Rider Pallet Truck
CBD20R-II/CBD25R-II/CBD30R-II(EPS)
Capacity: 2tons，2.5tons,3tons
:
:
:
Carryup 3-Way Electric Reach Truck
TW10&TW15
1. Loaded Capacity: 1Tons，1.5Tons
2. Optional lift height: 2500-7500mm ,and no loading weight missing under 5500mm
3. The min. width of aisle is 1510mm;
4. Colored monitor for triplex mast;
5. Soft backrest;
6. More Product Storage - Up to 60% increase;
7. More efficient use of available space
8. A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellent maneuverability even in limited space.
:
:
:
Three Wheels Electric Forklift
CDP12V/CDP15V SMART
Capacity: 1.2tons，1.5tons
Max.lift height :3000-6000mm
:
:
:
