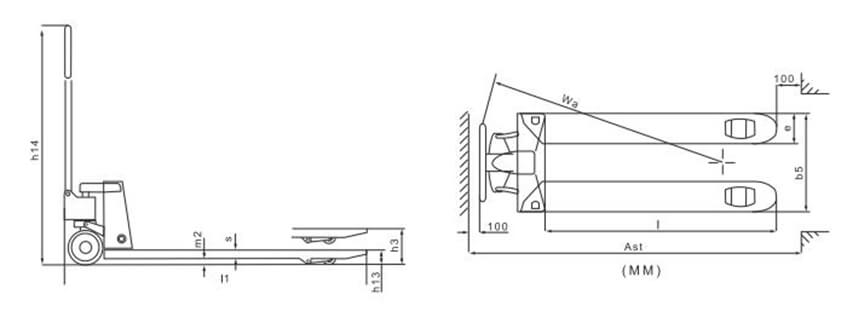

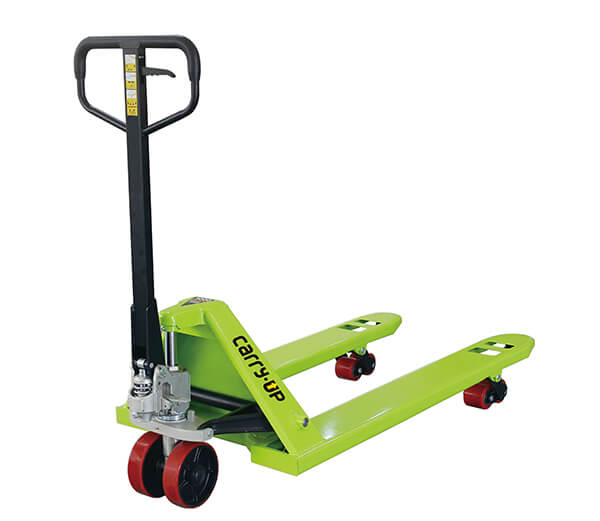

| CARRY•UP BF-III SPECIFICATION | ||||||
| Specification | 1 | Model | BF-III | |||
| 2 | Capacity | kg | 2000 | 2500 | 3000 | |
| 3 | Steering wheel size | mm | ￠180×50 | |||
| 4 | Fork wheel tandem | mm | Φ74×70/Φ80×70 | |||
| 5 | Fork wheel single | mm | Φ74×93/Φ80×93 | |||
| 6 | Max. Lifting height | mm | ≥110 | |||
| 7 | Lowered height | mm | 85/75 | |||
| 8 | Overall length | mm | 1315-1620 | |||
| 9 | Fork length | mm | 915/1100/1150/1220 | |||
| 10 | Width overall forks | mm | 520/540/685 | |||
| 11 | Turning radius | mm | 1120/1300/1350/1450 | |||
| 12 | Material of wheel | kg | PU/Nylon/Rubber | |||
| 13 | Service weight | kg | 68~81 | |||
Carryup Electric Rider Pallet Truck
CBD20R-II/CBD25R-II/CBD30R-II(EPS)
Capacity: 2tons，2.5tons,3tons
:
:
:
Carryup 3-Way Electric Reach Truck
TW10&TW15
1. Loaded Capacity: 1Tons，1.5Tons
2. Optional lift height: 2500-7500mm ,and no loading weight missing under 5500mm
3. The min. width of aisle is 1510mm;
4. Colored monitor for triplex mast;
5. Soft backrest;
6. More Product Storage - Up to 60% increase;
7. More efficient use of available space
8. A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellent maneuverability even in limited space.
:
:
:
Three Wheels Electric Forklift
CDP12V/CDP15V SMART
Capacity: 1.2tons，1.5tons
Max.lift height :3000-6000mm
:
:
:
