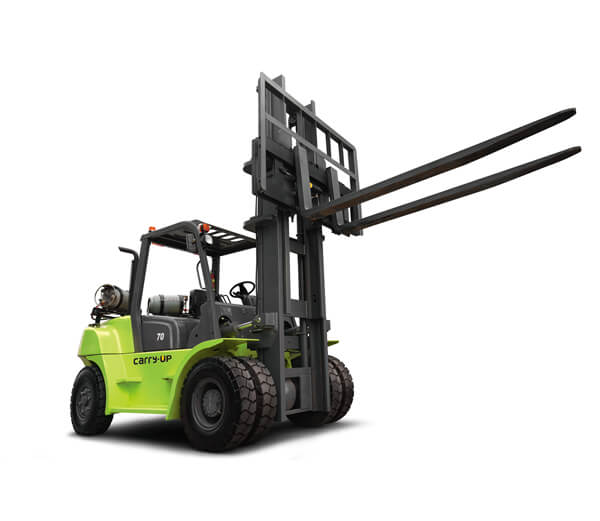

FGY50&FGY60&FGY70

Gasoline&LPG Forklift
FGY50,FGY60,FGY70
Capacity: 5tons,6tons,7tons
Max.lift height :3000~6000mm
Benefits & Features Specifications

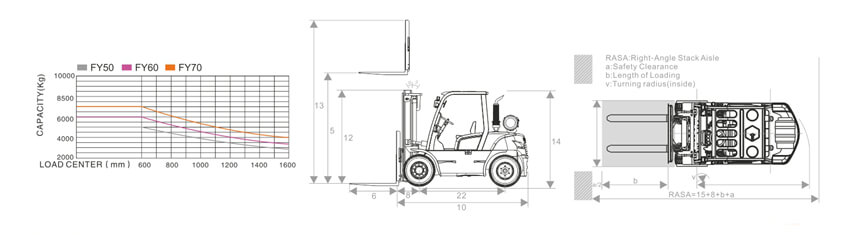

CARRY•UP FGY50~FGY70 DIESEL FORKLIFT SPECIFICATION
General 1 Model  　 FGY50 FGY60 FGY70
2 Power Type  　 Gasoline&LPG FORKLIFT
3 Rated Capacity  kg 5000 6000 7000
4 Load Centre  mm 600 600 600
Characteristic
&

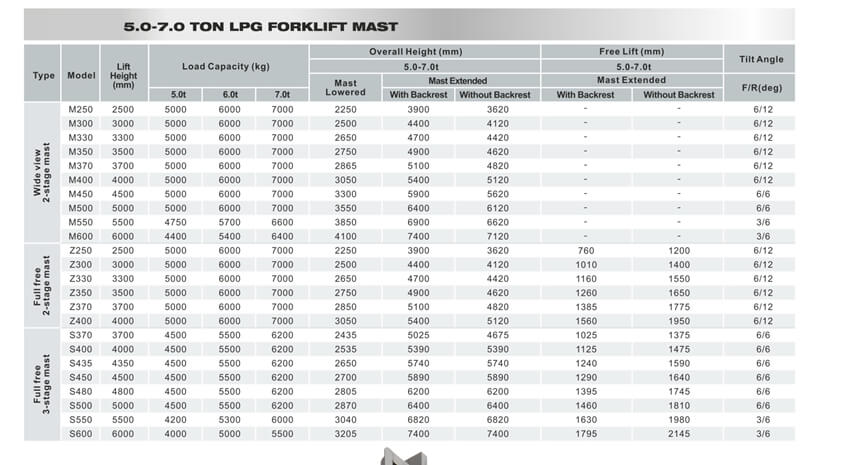

Dimension		 5 Lift Height  mm 3000~6000 3000~6000 3000~6000
6 Fork Size  L×W×T mm 1220×150×60 1220×150×60 1220×150×60
7 Mast Tilt Angle  F/R Deg 6°/12° 6°/12° 6°/12°
8 Fork Overhang (Wheel center to fork face)  mm 590 590 595
9 Ground Clearance（Bottom of mast） mm 200 200 200
10 Overall Dimension  Length to face of fork
(Without fork) 		 mm 3450 3450 3560
11 Overall Width  mm 2010 2010 2010
12 Mast Lowered Height  mm 2500 2500 2500
13 Mast Extended Height
(With backrest) 		 mm 4415 4415 4415
14 Overhead Guard Height mm 2470 2470 2470
15 Turning Radius (outside)  mm 3250 3250 3350
Performance 16 Speed  Travel (Full load)   km/h 30 30 30
17 Lifting (Full load)  mm/s 500 500 460
18 Max.Gradeability  % 20 20 20
Chassis 19 Tyre  Front mm 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
20 Rear mm 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
21 Wheelbase  mm 2250 2250 2250
22 Self weight  kg 8150 8750 9750
Power
&
Transmission		 23 Battery  Voltage/Capacity V/Ah (12V/80Ah) x 2 (12V/80Ah) x 2 (12V/80Ah) x 2
24 Engine  Model  　 GM4.3 GM4.3 GM4.3
25 Manufacture   　 GM GM GM
26 Rated output/r.p.m.  kw 56/2200 56/2200 56/2200
27 Rated torque/r.p.m.  N·m 240/750 240/750 240/750
28 No.of Cylinder  　 6 6 6
29 Bore×Stroke  L 101.6×88.39 101.6×88.39 101.6×88.39
30 Displacement cc 4300 4300 4300
31 Fuel Tank Capacity  L 140 140 140
32 Transmission  Type  　 Hydraulic    Hydraulic       Hydraulic
33 FWD/RVS  　 2/1 2/1 2/1
