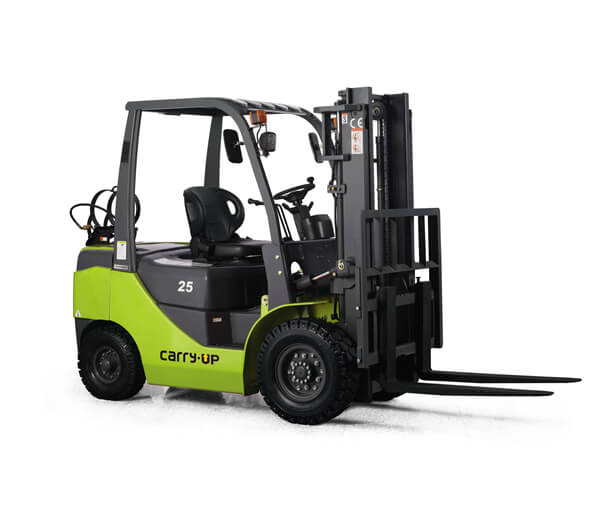

FGY20&FGY25

Gasoline&LPG Forklift
FGY20 FGY25
Capacity: 2tons,2.5tons
Max.lift height :3000~6000mm

Benefits & Features Specifications
CARRY•UP FGY20 FGY25 LPG FORKLIFT SPECIFICATION
General 1 Model 　 FGY20 FGY25
2 Power Type  　 Gasoline&LPG Gasoline&LPG
3 Rated Capacity kg 2000 2500
4 Load Centre mm 500 500
Characteristic
&

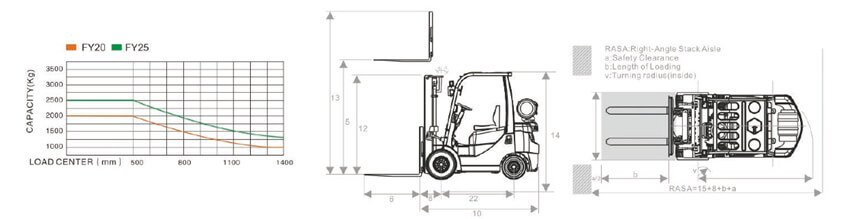

Dimension 		 5 Lift Height mm 3000 3000
6 Fork Size L×W×T    mm 1070×120×40 1070×120×40
7 Mast Tilt Angle F/R Deg 6°/12° 6°/12°
8 Front Overhang (Wheel center to fork face) mm 470 470
9 Ground Clearance（Bottom of mast） mm 120 120
10 Overall Dimension Length to face of fork
(Without fork)		 mm 2600 2600
11 Overall Width mm 1150 1150
12 Mast Lowered Height mm 2055 2055
13 Mast Extended Height
(With backrest)		 mm 4050 4050
14 Overhead Guard Height mm 2070 2070
15 Turning Radius (outside) mm 2310 2310
16 Min. insecting asisle 　 2380 2380
Performance 16 Speed Travel (No load) km/h 19 19
17 Lifting (Full load) mm/s 530 530
18 Max.Gradeability (No load/Full load) % 20 20
Chassis 19 Tire Front mm 7.00-12-12PR 7.00-12-12PR
20 Rear mm 6.00-9-10PR 6.00-9-10PR
21 Wheelbase mm 1600 1600
22 Self weight kg 3560 3700
Power
&
Transmission		 23 Battery Voltage/Capacity  V/Ah 12/80 12/80

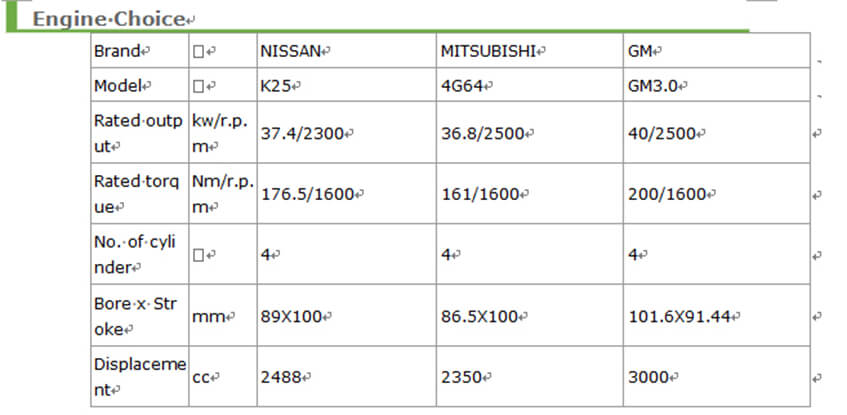

24 Engine Model 　 K25 K25
25 Manufacture 　 NISSAN NISSAN
26 Rated output/r.p.m. kw 37.4/2300 37.4/2300
27 Rated torque/r.p.m. N·m 176.5/1600 176.5/1600
28 No.of Cylinder 　 4 4
29 Bore×Stroke mm 89×100 89×100
30 Displacement cc 2488 2488
31  Fuel Tank Capacity L 60 60
32 Transmission Type 　 Hydraulic Hydraulic
33 FWD/RVS 　 1/1 1/1
