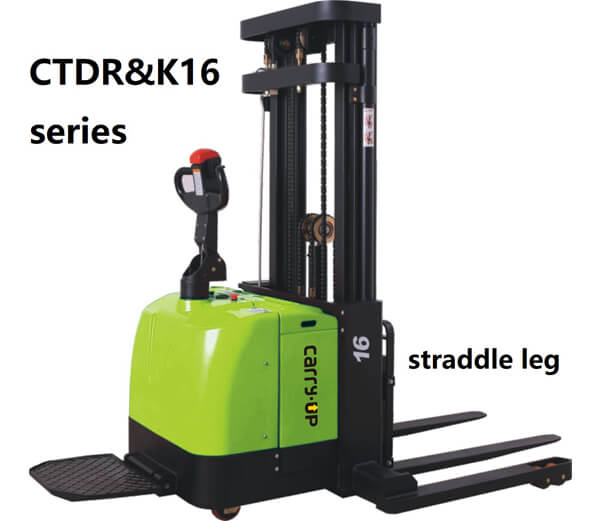

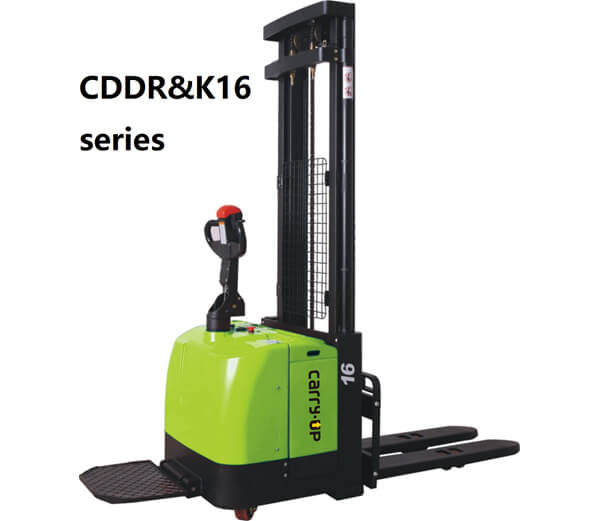

CDDR&K16CTDR&K16&12&10（I/II/III）


CDDR&K16-II / CDDR&K16-I/ CTDR&K16-II / CTDR&K16-I/

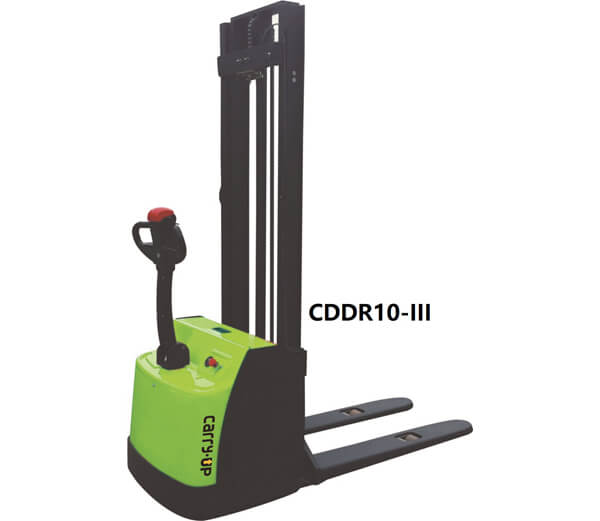

CDDR&K16-III/ CTDR&K16-III/ CDDR&K12-III/ CDDR10-III
Capacity: 1tons，1.2tons,1.6tons
Max.lift height
Benefits & Features Specifications
CARRY•UP ELECTRIC STACKER SPECIFICATION
Specification 1 Model 　 CDDR&K16-III CTDR&K16-III CDDR&K12-III CDDR10-III
2 Operating Type 　 Walkie& Stand On  Walkie& Stand On  Walkie
3 Leg Type 　 Narrow Leg  Straddle Leg Narrow Leg  Narrow Leg
4 Power Type 　 Electric Electric
5 Mast Type  　 2-Stage STD 2-Stage STD
6 Load Centre mm 600 600
7 Wheels Type mm PU PU
8 Wheel Base mm 1310 1270 1285
9 Wheel Quantity mm 1D / 2B / 4F 1D / 2B / 4F 1D / 1B / 4F
Dimensions 10 Standard Lift Height mm 1400/2000/2500/
3000/3300/3600/4000		 2000/2500/
3000/3300/3600		 3000
11 Lowered Fork Height mm 90 55 90 90
12 Max Extend Height mm 1900/2500/3000/
3500/3800/4100/4500		 2500/3000/
3500/3800/4100		 3385
13 Mast Lowered Height mm 1185/1535/1765/
1980/2135/2335/2500		 1535/1765/
1980/2135/2335		 2050
14 Fork Size(length/width/thickness) mm 1150(1220)/185/55 1070/100/40 1150(1220)/185/55
15 Overall Length mm 2050/2470 2005/2425 1993/2413 1898
16 Overall Width mm 856 1470 812 806
17 Min.Turning Radius mm 1580/1990 1565/1975 1525/1935 1475
18 Min.Aisle Width for Pallets 800×1200 mm 2180/2580 1470/1270 2130/2520 2045
19 Min.Aisle Width for Pallets 1000×1200 mm 2210/2600 2260/2585 2160/2540 2084
20 Min.ground Clearance mm 30 50 30 30
Performance 21 Speed Travel (Laden/unladen) km/h 5/5 5/5 3.5/4
22 Lifting (Laden/unladen) mm/s 130/230 130/230 130/230
23 Lowering (Laden/unladen) mm/s 130/230 130/230 130/230
24 Max.Gradeability (Laden/unladen) % 5/7 5/7
25 Service Weight（include battery ） kg 1240 1370 1110 1010
Driven 26 Motor Driven Motor kw AC 1.5 AC 1.5 AC 0.95
27 Lift  Motor kw DC 3.0  DC 3.0  DC 2.0
28 Steering Motor kw DC 0.15 DC 0.15 \
29 Battery Standard V/Ah 24/280 24/210
30 Controller Manufacturer 　 CURTIS  CURTIS  CURTIS  CURTIS
31 Brake 　 Electromagnetic / Regenerative Electromagnetic / Regenerative

Walkie&Rider Electric Stacker Truck--Manufacturer CARRY•UP

♦ Mechanical steering--Economic,comfortable,more reliable.
♦ Energy conservation: Save energy,every day only 5KWh.
♦ Electric lifting--Rapid,efficient,electricity limit switch is STD.
♦ Short wheelbase--Samll energy radius,suitable for narrow space.
♦ AC Controller--Stepless,stong power,multiple automatic protection.
♦ Intelligent Control--Regenerative braking, automatic energy recovery.
♦ AC driving lystem--Low noise,quite,without carbon brush and free maintenance.
