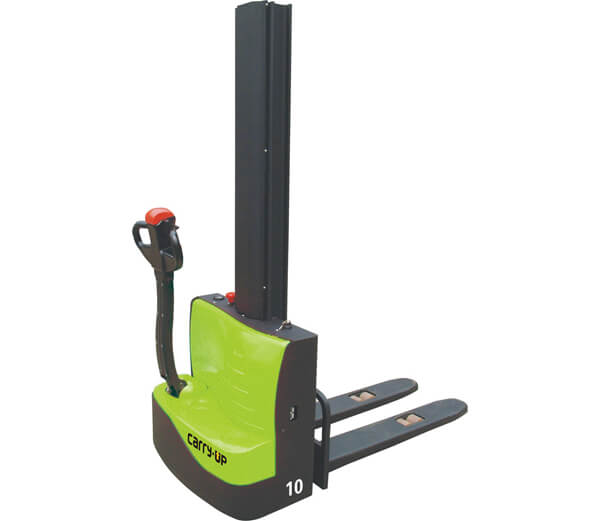

CDDRD10CTDRD10
| CARRY•UP CDDRD10/CTDRD10 SINGLE COLUMN STACKER SPECIFICATION | ||||||
| Specification | 1 | Model | CDDRD10 | CTDRD10 | ||
| 2 | Operating Type | Walkie | Walkie | |||
| 3 | Leg Type and Mast Type | Narrow Leg & Single Stage | Straddle Leg & Single Stage | |||
| 4 | Power Type | Electric | Electric | |||
| 5 | Load Centre | mm | 600 | 600 | ||
| 6 | Wheels Type | mm | PU | PU | ||
| 7 | Wheel Base | mm | 1052 | 1134 | ||
| 8 | Wheel Quantity | mm | 1D / 1B / 4F | 1D / 1B /2F | ||
| Dimensions | 9 | Standard Lift Height | mm | 1600/1950mm | 1600/1950mm | |
| 10 | Lowered Fork Height | mm | 90 | 55 | ||
| 11 | Fork Size(length/width/thickness) | mm | 1150(1220)/185/55 | 1070/100/40 | ||
| 12 | Overall Length | mm | 1634 | 1640 | ||
| 13 | Overall Width | mm | 790 | 940 | ||
| 14 | Outside Width between Forks | mm | 550/600/650/685 | 200—812 | ||
| 15 | Inside Width between Forks | mm | 180/230/280/315 | 0—612 | ||
| 16 | Max Extend Height | mm | 2055/2405 | 2055/2405 | ||
| 17 | Mast Lowered Height | mm | 2055/2405 | 2055/2405 | ||
| 18 | Min.Turning Radius | mm | 1262 | 1344 | ||
| 19 | Min.Aisle Width for Pallets 800×1200 | mm | 1841 | 1894 | ||
| 20 | Min.Aisle Width for Pallets 1000×1200 | mm | 1833 | 1936 | ||
| 21 | Min.ground Clearance | mm | 30 | 50 | ||
| Performance | 22 | Speed | Travel (Laden/unladen) | km/h | 3/3.5 | 3/3.5 |
| 23 | Lifting (Laden/unladen) | mm/s | 130/230 | 130/230 | ||
| 24 | Lowering (Laden/unladen) | mm/s | 130/230 | 130/230 | ||
| 25 | Max.Gradeability | (Laden/unladen) | % | 5/7 | 5/7 | |
| 26 | Service Weight（include battery ） | kg | 460 | 458 | ||
| Driven | 27 | Motor | Driven Motor | kw | DC 0.63 | DC 0.63 |
| 28 | Lift Motor | kw | DC 2.0 | DC 2.0 | ||
| 29 | Steering Motor | kw | / | / | ||
| 30 | Battery | Standard | V/Ah | 24/70 | 24/70 | |
| 31 | Controller | Manufacturer | CURTIS | CURTIS | ||
| 32 | Brake | Electromagnetic/Regenerative | Electromagnetic/Regenerative | |||
