CDD15KCDD20K

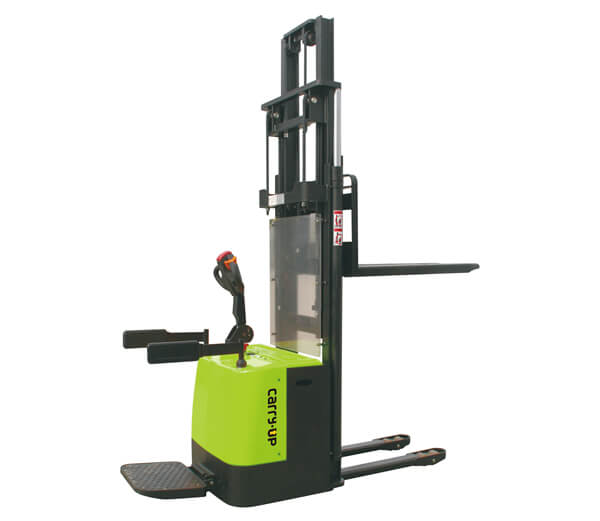

| CARRY•UP CDD15K/20K ELECTRIC STACKER | |||||
| Specification | 1 | Model | CDD15K/CDD20K | ||
| 2 | Operating Type | Stand on | |||
| 3 | Power Type | Electric | |||
| 4 | Load Capacity | kg | 1500/2000 | ||
| 5 | Load Center | c(mm) | 600 | ||
| 6 | Wheel Type | Polyurethane | |||
| 7 | Wheelbase | y(mm) | 1355 | ||
| 8 | Wheel Size,front | mm | ￠250×75 | ||
| 9 | Wheel Size,rear | mm | ￠80×70 | ||
| 10 | Additional wheel | mm | ￠115×50 | ||
| 11 | Thread,rear | b11(mm) | 570/685 | ||

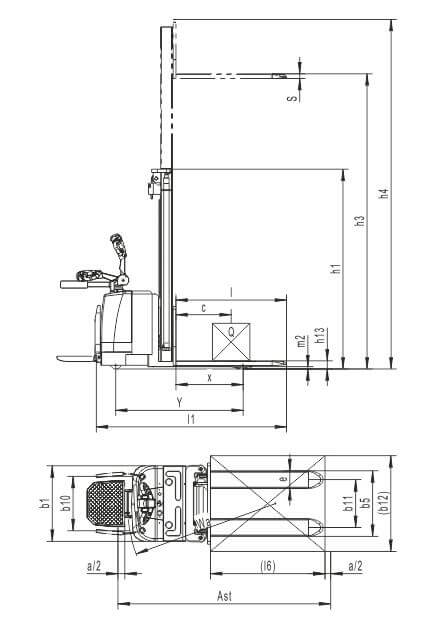

| Dimensions | 12 | Lowered Mast Height | h1(mm) | 2085/1765/2015/2165/ 2330/2000/2170/2340 | |
| 13 | Max.lifting Height | h3(mm) | 1600/2500/3000/3300/ 3500/4500/5000/5500 | ||
| 14 | Extended Mast Height | h4(mm) | 2085/3050/3550/3850/ 3950/5050/5550/6050 | ||
| 15 | Lowered Fork Height | h13(mm) | 90 | ||
| 16 | Overall Length | l1(mm) | 2010/2020 | ||
| 17 | Overall Width | b1(mm) | 790 | ||
| 18 | Fork Dimensions | S/e/l(mm) | 60/170/1150 | ||
| 19 | Width over Forks | b5(mm) | 570/685 | ||
| 20 | Aisle Width, with Pallet 1000x1200 Crosswise | Ast(mm) | 2900 | ||
| 21 | Aisle Width, with Pallet 800x1200 Lengthwise | Ast(mm) | 2840 | ||
| 22 | Groud Clearance | m2(mm) | 40 | ||
| 23 | Turning Radius | mm | 1600 | ||
| Performance | 24 | Speed | Lifting (Laden/unladen) | m/s | / |
| 25 | Falling(Laden/unladen) | m/s | hand control | ||
| 26 | Max.Gradeability | (Laden/unladen) | % | 8/10 | |
| 27 | Service Weight（include battery ） | kg | 1050/1220/1185/1350 | ||
| Driven | 28 | Service brake | Electromagnetic / Regenerative | ||
| 29 | Motor | Driven Motor | kw | 1.2/1.5 | |
| 30 | Lift Motor | kw | 3.3 | ||
| 31 | Steering Motor Type | Electric | |||
| 32 | Battery | Voltage/noinal Capacity | V/Ah | 24/110(240) | |
| 33 | Size(L×W×H) | mm | 650×197×530 | ||
