CBD20S

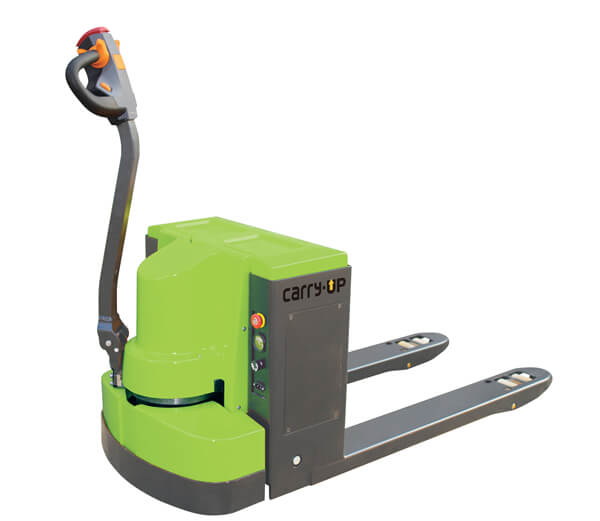

Carryup Electric Walkie Pallet Truck
CBD20S
Capacity: 2tons
CBD20S
Capacity: 2tons
CBD20S
| CARRY•UP CBD20S ELECTRIC PALLET TRUCK SPECIFICATION | |||||
| Specification | 1 | Model | CBD20S | ||
| 2 | Operating type | Walkie | |||
| 3 | Power type | electric | |||
| 4 | Load Capacity | kg | 2000 | ||
| 5 | Load Center | mm | 500 | ||
| 6 | Wheel size,front | mm | ￠250×75 | ||
| 7 | Wheel size,rear | mm | ￠80×93/￠80×70 | ||

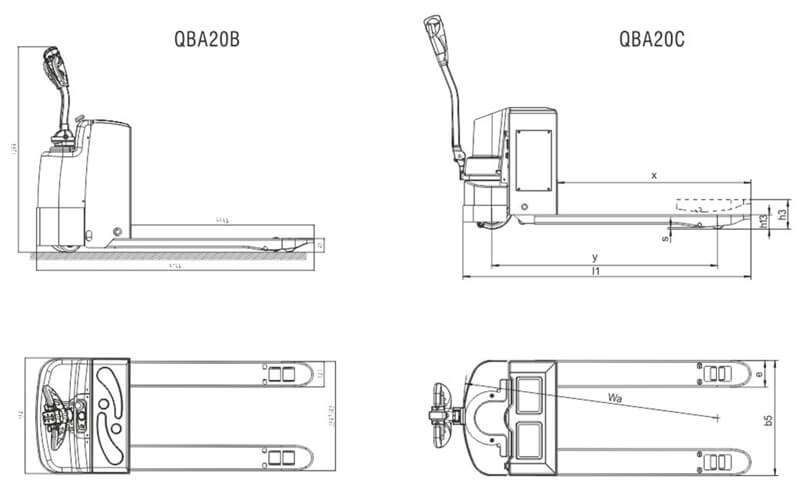

| Dimensions | 8 | Max.lifting height | h3(mm) | 195 | |
| 9 | Min.fork lowered height | h13(mm) | 85 | ||
| 10 | Overall length | l1(mm) | 1710 | ||
| 11 | Overall fork width | b1(mm) | 685 | ||
| 12 | Fork dimensions(s/e/l) | s/e/l(mm) | 57/160/1150 | ||
| 13 | Width over forks | b5(mm) | 550/685 | ||
| 14 | Turning radius | mm | 1510 | ||
| Performance | 15 | Speed | Travel (Laden/unladen) | km/h | 3.5/4 |
| 16 | Max.Gradeability | (Laden/unladen) | % | 8/16 | |
| 17 | Service Weight（include battery ） | kg | 360 | ||
| Driven | 18 | Service brake | Electromagnetic/Regenerative | ||
| 19 | Motor | Driven Motor | kw | 1.2 | |
| 20 | Lift Motor | kw | 0.8 | ||
| 21 | Steering motor | kw | / | ||
| 22 | Battery | Voltage/noinal capacity | V/Ah | 24/120 | |
| 23 | Weight | kg | 39.1×2 | ||
