CBD15W

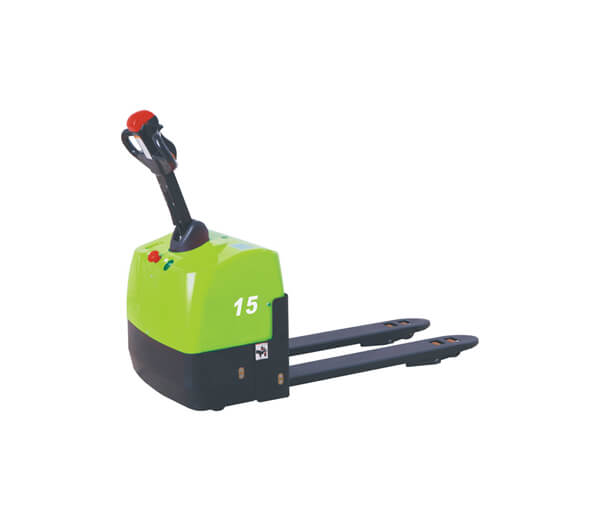

Carryup Electric Walkie Pallet Truck
CBD15W
Capacity: 1.5tons.
CBD15W
Capacity: 1.5tons.
CBD15W
| CARRY•UP CBD15W ELECTRIC PALLET TRUCK SPECIFICATION | |||||
| Specification | 1 | Model | CBD15W | ||
| 2 | Operating type | Walkie | |||
| 3 | Power type | electric | |||
| 4 | Rated Capacity | kg | 1500 | ||
| 5 | Load Centre | mm | 600 | ||
| 6 | Wheels type | mm | PU | ||
| 7 | Wheel base | mm | 1234 | ||
| 8 | Wheel quantity-D/B/F | mm | 1D/4F/2B | ||
| 9 | driving wheel size | mm | ￠252×67 | ||
| 10 | Balance wheel size | mm | ￠99.5×40 | ||
| 11 | Front wheel size | mm |
￠73×98（Single wheel） ￠84×70（Double wheel) |
||
| Dimensions | 12 | Min.fork lowered height | mm | 90 | |
| 13 | Max.fork lifting height | mm | 205 | ||
| 14 | Max.lifting height | mm | 120 | ||
| 15 | Overall fork width | mm | 540/600/650/685 | ||
| 16 | Fork length | mm | 1150/1200 | ||
| 17 | Fork width | mm | 160 | ||
| 18 | Fork thickness | mm | 75 | ||
| 19 | Overall length | mm | 1630 | ||
| 20 | Overall width | mm | 724 | ||
| 21 | Overall height(With handle) | mm | 1220 | ||
| 22 | Overall height(Without handle) | mm | 685 | ||
| 23 | Min.Turning radius | mm | 1400 | ||
| 24 | Min.Aisle width for pallets 800×1200 | mm | 1817 | ||
| 25 | Min.Aisle width for pallets 1000×120 | mm | 1858 | ||
| Performance | 26 | Speed | Travel (Laden/unladen) | km/h | 3.5/4 |
| 27 | Lifting (Laden/unladen) | mm/s | 56/60 | ||
| 28 | Lowering (Laden/unladen) | mm/s | 57/59 | ||
| 29 | Max.Gradeability | (Laden/unladen) | % | 5/7 | |
| 30 | Service Weight（include battery ） | kg | 285 | ||
| Driven | 31 | Motor | Driven Motor | kw | DC 0.63 |
| 32 | Lift Motor | kw | DC 0.8 | ||
| 33 | Steering motor | kw | / | ||
| 34 | Battery | Standard | V/Ah | 24/70 | |
| 35 | Controller | Manufacturer | CURTIS | ||
| 36 | Brake | Electromagnetic / Regenerative | |||
