CBD15S

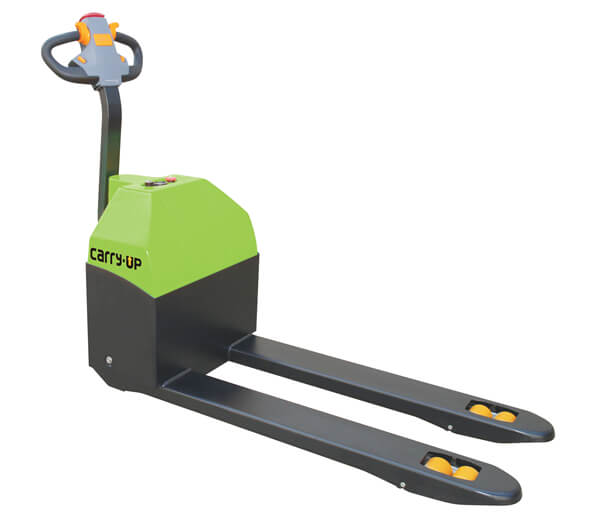

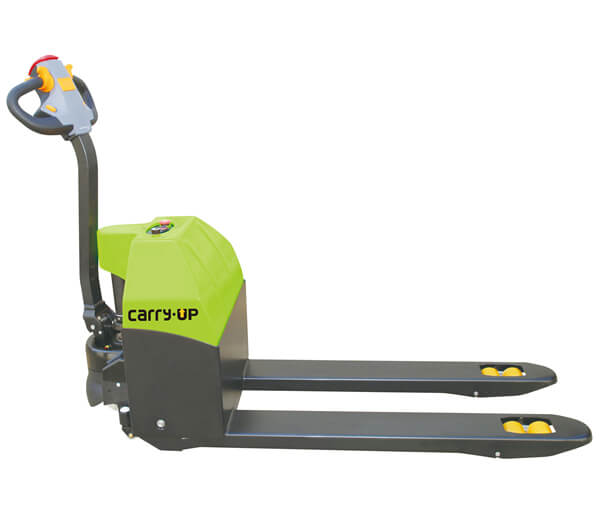

Carryup Electric Walkie Pallet Truck
CBD15S
Capacity: 1.5tons.
CBD15S
Capacity: 1.5tons.
CBD15S
| CARRY•UP CBD15S ELECTRIC PALLET TRUCK SPECIFICATION | |||||
| Specification | 1 | Model | CBD15S | ||
| 2 | Operating type | Walkie | |||
| 3 | Power type | electric | |||
| 4 | Load Capacity | kg | 1500 | ||
| 5 | Load Center | c(mm) | 500 | ||
| 6 | Wheels type | PU | |||
| 7 | driving wheel size | mm | ￠210×70 | ||
| 8 | Balance wheel size | mm | 0 | ||
| 9 | Bearing wheel size | mm | ￠80×93/￠80×70 | ||
| 10 |
Wheel quantity-D/B/F （drving wheel/balance wheel/front wheel) |
1/0/2(4) | |||
| 11 | Thread,front | b10(mm) | 413 | ||
| 12 | Thread,rear | b11(mm) | 518 | ||

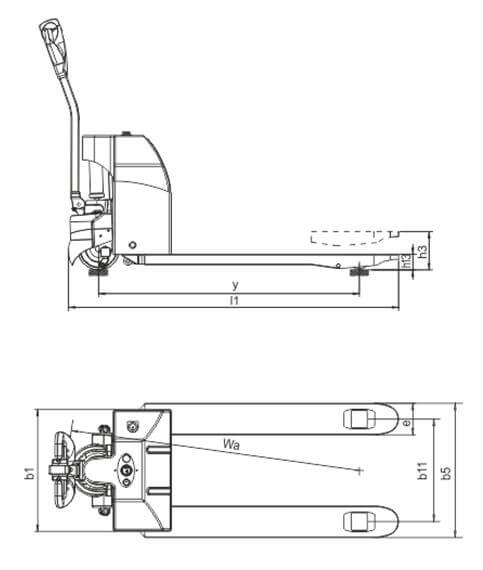

| Dimensions | 13 | Max.lifting height | h3(mm) | 195 | |
| 14 | Min.fork lowered height | h13(mm) | 80 | ||
| 15 | Overall length | l1(mm) | 1670 | ||
| 16 | Overall width | b1(mm) | 680 | ||
| 17 | Fork dimensions(s/e/l) | s/e/l(mm) | 53/160/1150 | ||
| 18 | Overall fork width | b5(mm) | 550/685 | ||
| 19 | Turning radius | mm | 1470 | ||
| Performance | 20 | Speed | Travel (Laden/unladen) | km/h | 3.5/4 |
| 21 | Max.Gradeability | (Laden/unladen) | % | 3/10 | |
| 22 | Service Weight（include battery ） | kg | 210 | ||
| Driven | 23 | Service brake | / | / | |
| 24 | Motor | Driven Motor | kw | 0.75 | |
| 25 | Lift Motor | kw | 0.8 | ||
| 26 | Steering motor | kw | / | ||
| 27 | Battery | Voltage/noinal capacity | V/Ah | 24/75 | |
| 28 | Weight | kg | 24×2 | ||
| 29 | Size(L×W×H) | mm | 260×170×230 | ||
| 30 | Brake | Electromagnetic / Regenerative | |||
